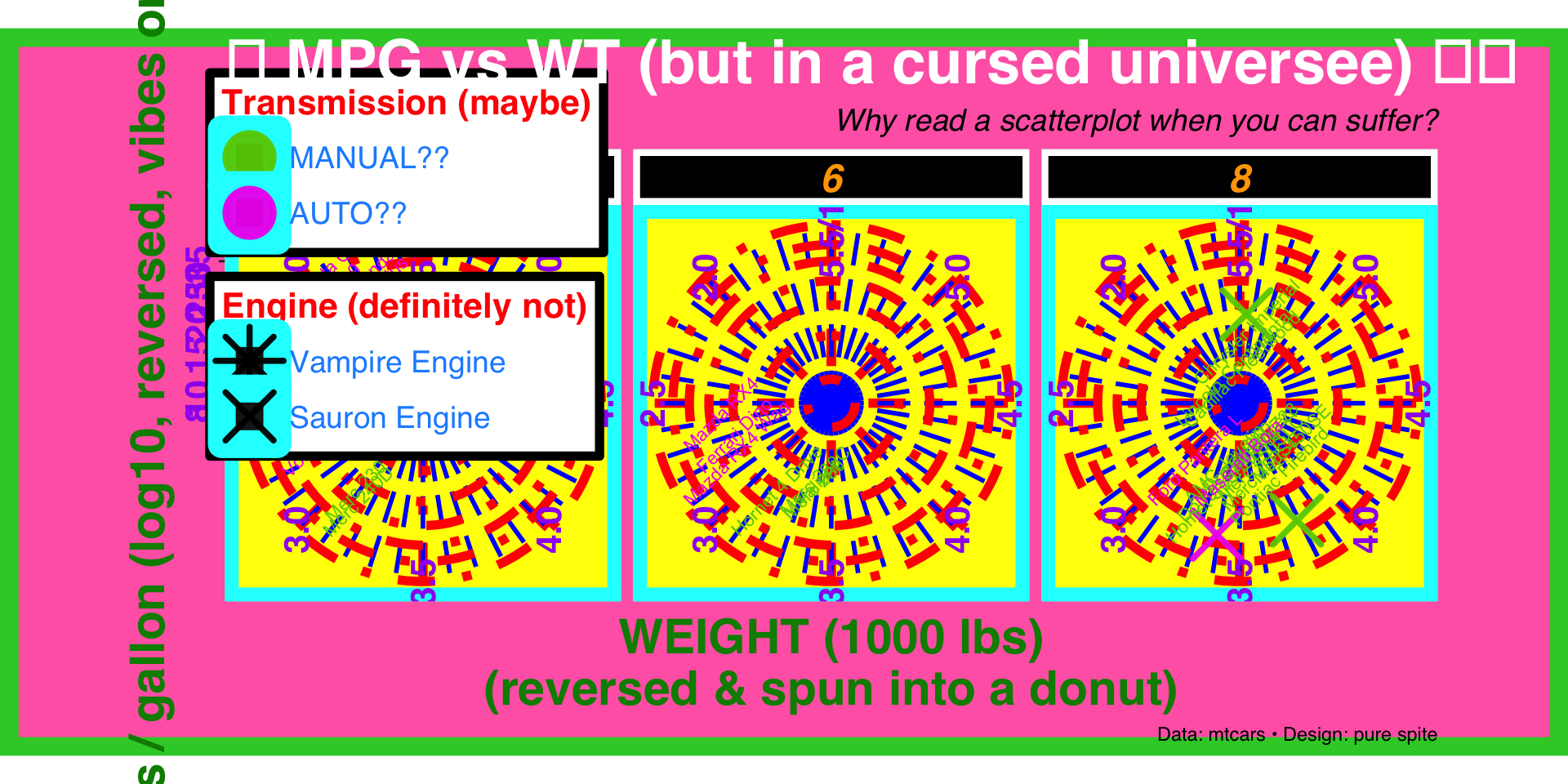

Ugly plot
Honorable mention: Ben Mei-Dan
Code

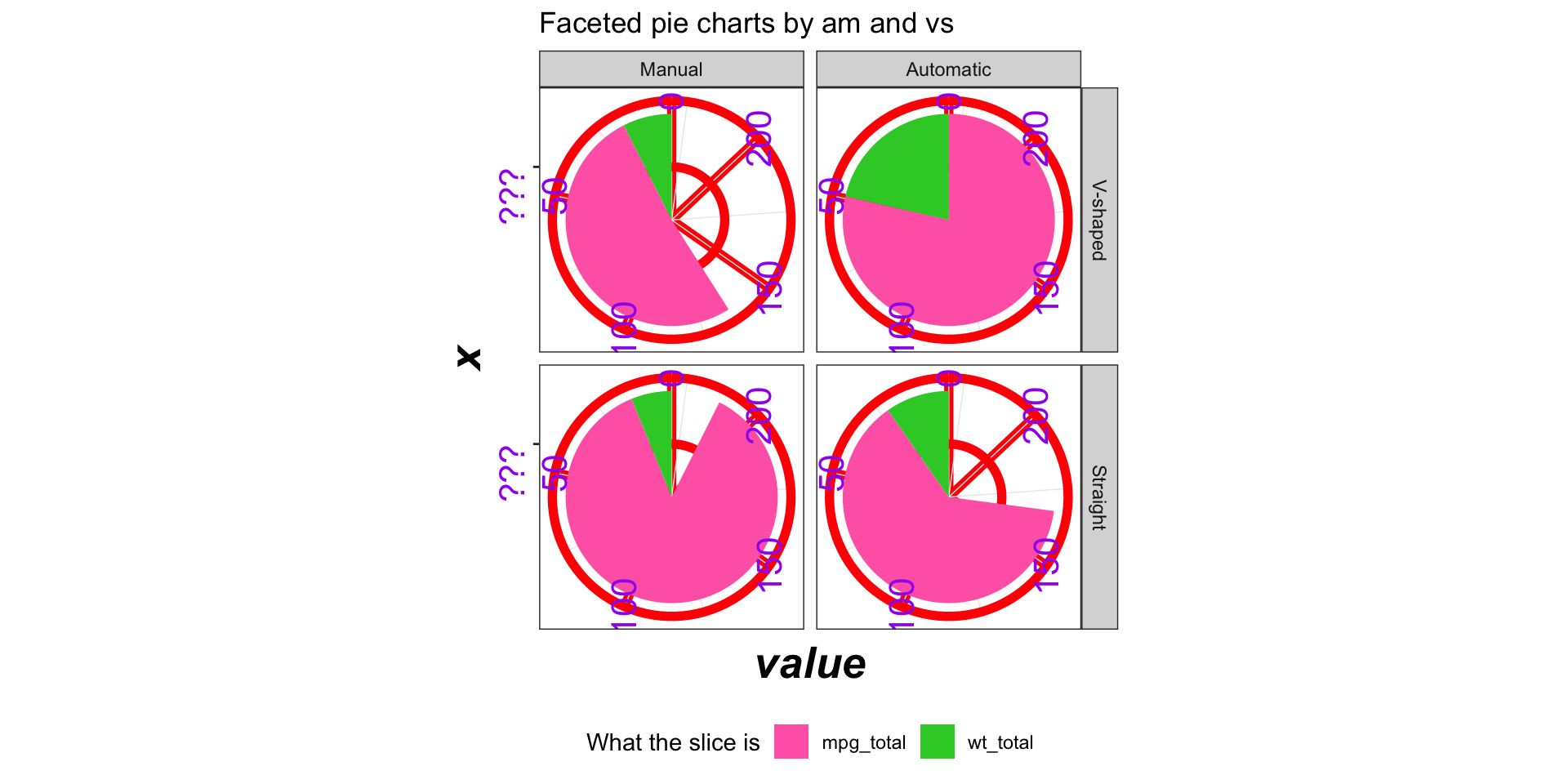

mtcars|>mutate(am =factor(am, levels =c(1, 0), labels =c("Manual", "Automatic")))|>mutate(vs =factor(vs, levels =c(0,1), labels =c("V-shaped", "Straight")))|>group_by(am, vs)|>summarize(mpg_total =sum(mpg), wt_total =sum(wt), .groups ="drop")|>pivot_longer( cols =c(mpg_total, wt_total), names_to ="metric", values_to ="value")|>ggplot(aes(x ="", y =value, fill =metric))+geom_col(show.legend =TRUE)+coord_polar(theta ="y")+facet_grid(vs~am)+labs( title ="Faceted pie charts by am and vs", fill ="What the slice is")+scale_fill_manual(values =c("hotpink", "limegreen"))+scale_y_reverse()+scale_x_discrete(labels =c("???"))+theme_bw()+theme( legend.position ="bottom", axis.text =element_text(angle =90, size =16, color ="purple"), axis.title =element_text(size =20, face ="bold.italic"), panel.grid.major =element_line(color ="red", size =2))
Honorable mention: Celina Chen
Code

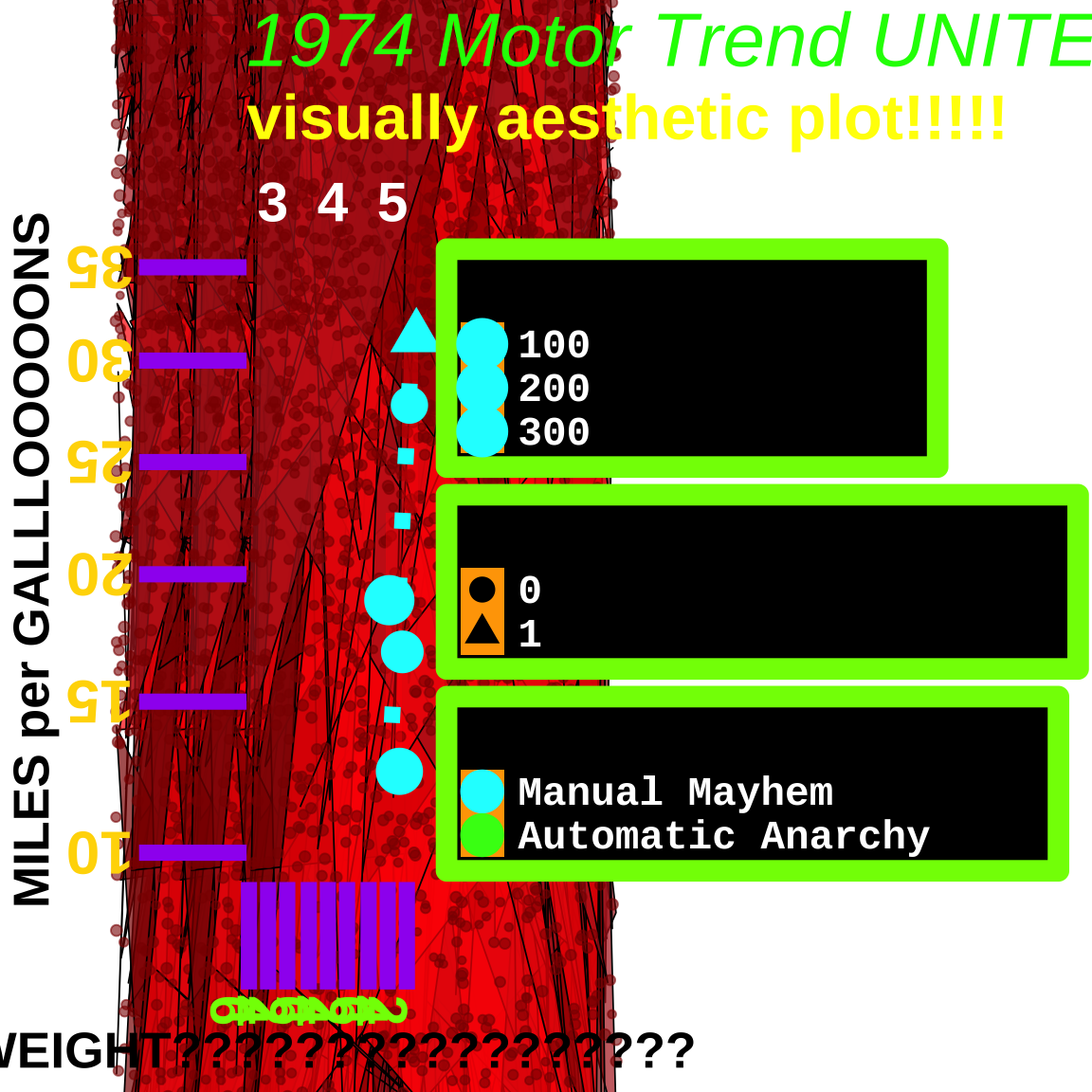

ggplot(mtcars,aes( x =wt, y =mpg, color =factor(am, levels =c(1, 0)), shape =factor(vs, levels =c(1, 0))))+# Giant points + jitter = chaosgeom_point( size =9, alpha =0.95, stroke =2, position =position_jitter(width =0.25, height =1.5))+# Overlapping labels for maximum visual paingeom_text(aes(label =row.names(mtcars)), size =3, angle =45, vjust =-0.4, show.legend =FALSE)+# Fragment into panelsfacet_wrap(~cyl, nrow =1)+# Reverse + weird limits + tons of minor breaksscale_x_reverse( limits =c(5.5, 1.5), breaks =seq(5.5, 1.5, -0.5), minor_breaks =seq(5.5, 1.5, -0.1))+# Reverse + log transform = extra confusingscale_y_reverse( trans ="log10", limits =c(35, 8), breaks =c(35, 30, 25, 20, 15, 10, 8))+# Weaponized color choices + misleading labelsscale_color_manual( values =c("magenta2", "chartreuse3"), labels =c("AUTO??", "MANUAL??"), guide =guide_legend(reverse =TRUE, title.position ="top"))+# Aggressive shapes that don’t help interpretationscale_shape_manual( values =c(8, 4), labels =c("Vampire Engine", "Sauron Engine"))+# Turn a scatterplot into a donut of confusioncoord_polar(theta ="x")+labs( title ="💀 MPG vs WT (but in a cursed universe) 💀", subtitle ="Why read a scatterplot when you can suffer?", x ="WEIGHT (1000 lbs)\n(reversed & spun into a donut)", y ="Miles / gallon (log10, reversed, vibes only)", color ="Transmission (maybe)", shape ="Engine (definitely not)", caption ="Data: mtcars • Design: pure spite")+theme(# Use safe fonts so Quarto can render (no Comic Sans errors) text =element_text(family ="sans"), plot.background =element_rect(fill ="hotpink", color ="limegreen", linewidth =8), panel.background =element_rect(fill ="yellow", color ="cyan", linewidth =6), panel.grid.major =element_line(color ="red", linewidth =2, linetype ="dotdash"), panel.grid.minor =element_line(color ="blue", linewidth =1, linetype ="longdash"), strip.background =element_rect(fill ="black", color ="white", linewidth =3), strip.text =element_text(color ="orange", size =18, face ="bold.italic"), axis.text =element_text(color ="purple", size =16, face ="bold", angle =90, vjust =0.5), axis.title =element_text(color ="green4", size =22, face ="bold"), plot.title =element_text(color ="white", size =28, face ="bold", hjust =0), plot.subtitle =element_text(color ="black", size =14, face ="italic", hjust =1), legend.position =c(0.15, 0.85), legend.background =element_rect(fill ="white", color ="black", linewidth =2), legend.key =element_rect(fill ="grey10"), legend.text =element_text(color ="dodgerblue", size =14), legend.title =element_text(color ="red", size =16, face ="bold"), plot.margin =margin(5, 60, 5, 60))
Honorable mention: Lachlan Black
Code
library(showtext)showtext_auto()set.seed(1)bg_dots<-data.frame( x =runif(6000, -20, 20), y =runif(6000, -50, 100), s =runif(6000, 1, 8))bg_poly<-data.frame( x =runif(4000, -20, 20), y =runif(4000, -50, 100), group =rep(1:400, each =10))bg_poly$fill_col<-rep(sample(c("red", "darkred", "firebrick"), 400, replace =TRUE), each =10)ggplot(mtcars, aes(x =wt, y =mpg))+# Background polygonsgeom_polygon( data =bg_poly,aes(x =x, y =y, group =group, fill =fill_col), inherit.aes =FALSE, alpha =0.7, color ="black", linewidth =0.3, show.legend =FALSE)+# Background dotsgeom_point( data =bg_dots,aes(x =x, y =y, size =s), inherit.aes =FALSE, color ="darkred", alpha =0.6, show.legend =FALSE)+scale_fill_identity()+# Density layer (separate fill scale)ggnewscale::new_scale_fill()+stat_bin2d( bins =25,aes(fill =after_stat(count)), alpha =0.4, show.legend =FALSE)+scale_fill_gradient(low ="red", high ="darkred")+# Real datageom_smooth(aes(color =factor(am, levels =c(1, 0))), se =FALSE, method ="lm", linetype ="dotted", linewidth =3)+geom_jitter(aes( color =factor(am, levels =c(1, 0)), shape =factor(vs), size =hp), width =0.7, height =0.7, stroke =5, alpha =1)+facet_wrap(~gear)+labs( title ="1974 Motor Trend UNITED STATES OF THE AMERICAS", subtitle ="visually aesthetic plot!!!!!", x ="WEIGHT?????????????????", y ="MILES per GALLLOOOOONS", color ="TRANSMISSION CHAOS", shape ="ENGINE OR SOMETHING", size ="HORSEPOWER???")+scale_color_manual( values =c("cyan", "#39FF14"), labels =c("Manual Mayhem", "Automatic Anarchy"))+scale_x_reverse()+scale_y_continuous(trans ="sqrt")+coord_cartesian( xlim =c(6, 1), ylim =c(35, 10), clip ="off")+theme( legend.position ="right", legend.background =element_rect( fill ="black", color ="chartreuse", linewidth =4), legend.text =element_text( family ="mono", color ="white", size =16), legend.key =element_rect(fill ="orange"), text =element_text( family ="Comic Sans MS", size =20, face ="bold"), plot.title =element_text( size =30, color ="green", face ="italic"), plot.subtitle =element_text( size =25, color ="yellow"), panel.background =element_rect(fill =NA), plot.background =element_rect(fill =NA), strip.background =element_rect(fill =NA), strip.text =element_text( size =22, color ="white", face ="bold"), panel.grid.major =element_line( color ="yellow", linewidth =3, linetype ="dotdash"), panel.grid.minor =element_line( color ="white", linewidth =2), axis.text.x =element_text( angle =270, color ="chartreuse", size =22), axis.text.y =element_text( angle =180, color ="gold", size =24), axis.ticks =element_line( linewidth =3, color ="purple"), axis.ticks.length =unit(1.5, "cm"), panel.spacing =unit(0.1, "cm"))+guides( size =guide_legend( override.aes =list( color ="cyan", fill ="cyan1", alpha =1, size =3)))
Honorable mentschen: Nicholas Wang
Code

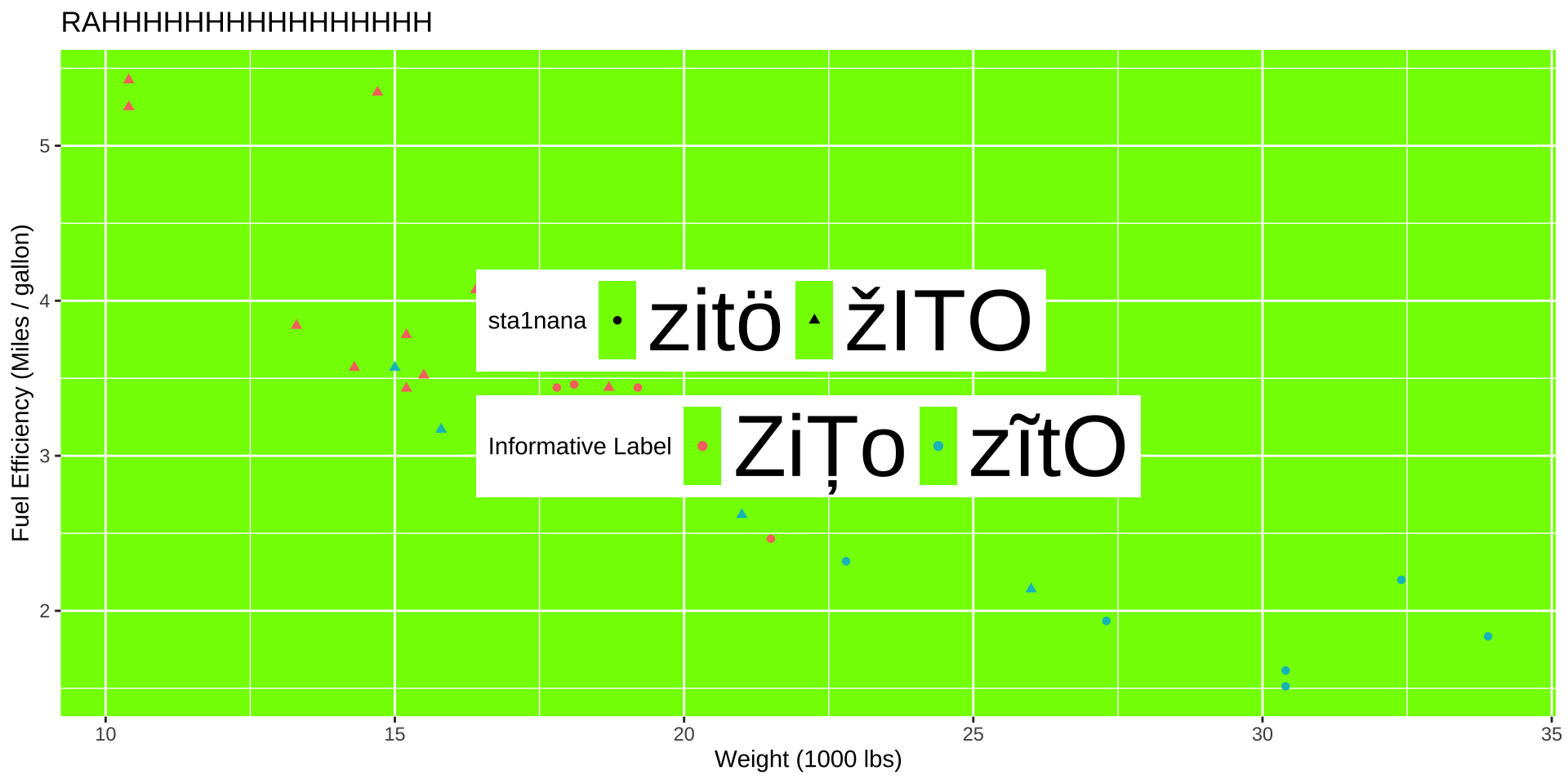

mtcars|>mutate( am =case_when(am==0~"ZiȚo",am==1~"zĩtO"), am =fct_relevel(am, "Manual"), vs =case_when(vs==0~"žITO",vs==1~"zitö"))|>ggplot(aes(y =wt, x =mpg, color =am))+geom_point(aes(shape =vs))+labs( x ="Weight (1000 lbs)", y ="Fuel Efficiency (Miles / gallon)", title ="RAHHHHHHHHHHHHHHHH", color ="Informative Label", shape ="sta1nana")+theme(legend.position =c(0.5,0.5), legend.text =element_text(size =40), legend.direction ="horizontal", panel.background =element_rect(fill ="chartreuse"))
Honorable mentschen: Zachary Hyman
Code

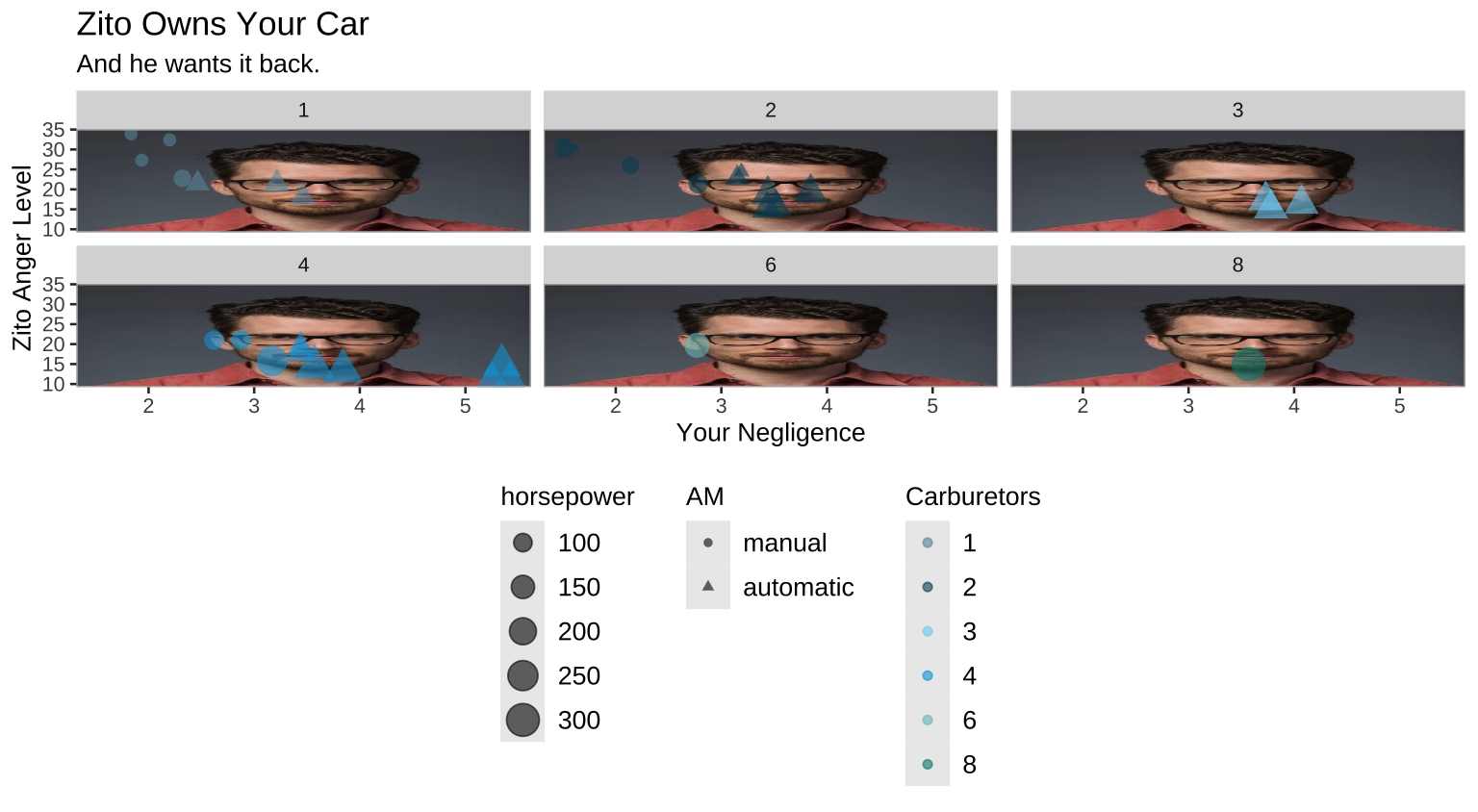

library(jpeg)library(grid)mt_clean<-mtcars|>mutate( am =if_else(am==0, "automatic", "manual"), am =fct_relevel(am, "manual", "automatic"))jcz_file<-"images/13/jcz.jpg"image_data<-jpeg::readJPEG(jcz_file)grob_image<-rasterGrob(image_data, width =unit(1, "npc"), height =unit(1, "npc"), interpolate =FALSE)ggplot(mt_clean, aes(x =wt, y =mpg, color =factor(carb), shape =am, size =hp))+annotation_custom(grob_image, xmin =-Inf, xmax =Inf, ymin =-Inf, ymax =Inf)+geom_point(alpha =0.6)+labs( x ="Your Negligence", y ="Zito Anger Level", color ="Carburetors", shape ="AM", size ="horsepower", title ="Zito Owns Your Car", subtitle ="And he wants it back.")+theme_calc()+theme( legend.position ="bottom")+facet_wrap(~carb)+scale_color_economist()
Honorable mentschen: Parker Upton
Code

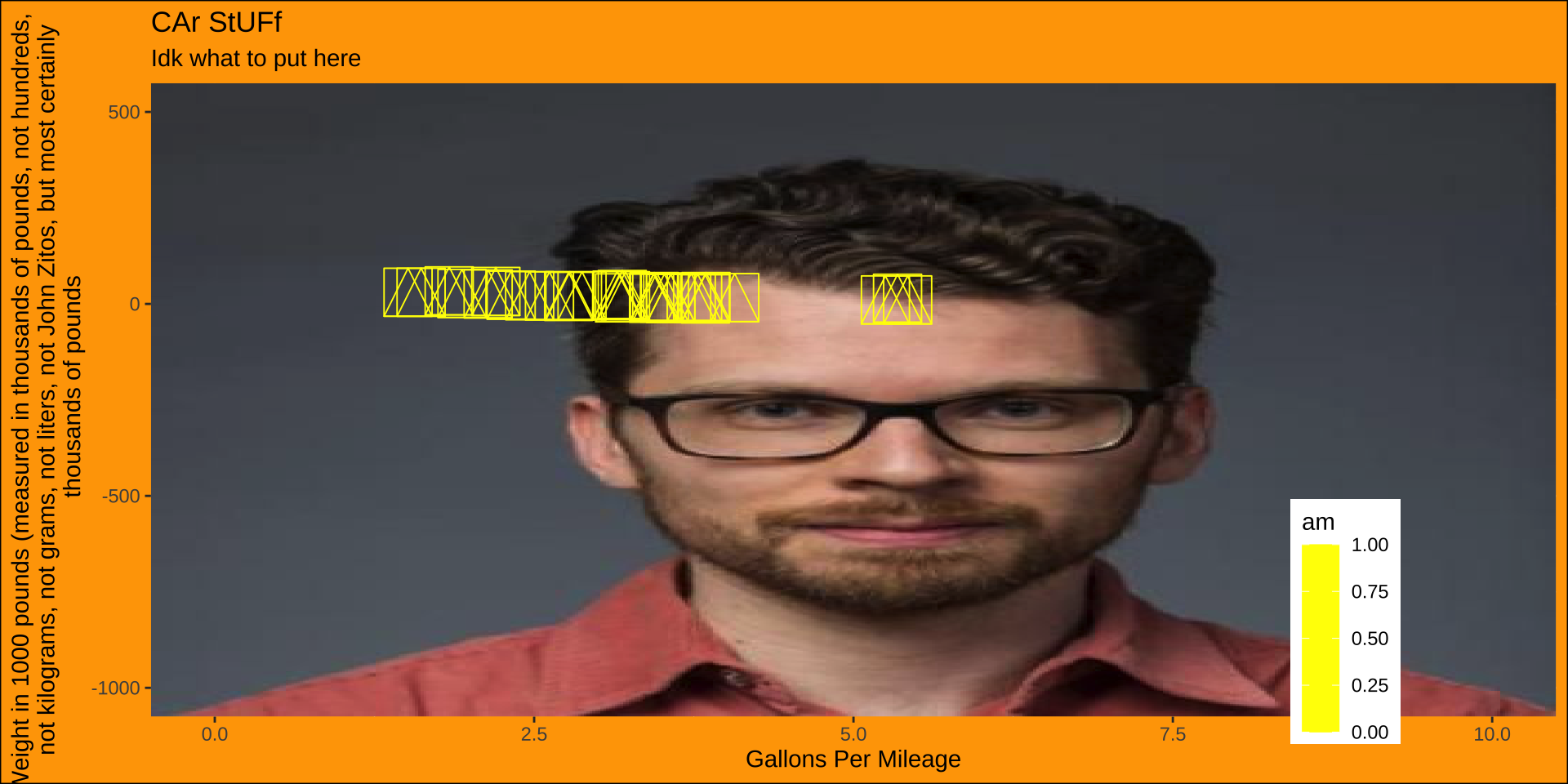

library(jpeg)mtcars_categorical<-mtcars|>mutate( transmission =case_when(am==0~"Automatic",am==1~"Manual"), engine =case_when(vs==0~"V-shaped",vs==1~"straight"))url<-"https://scholars.duke.edu/profile-images/thumbnail500/0935990.jpg"tmp<-tempfile(fileext =".jpg")download.file(url, tmp, mode ="wb")img<-readJPEG(tmp)ggplot(mtcars_categorical, aes(x =wt, y =mpg, color =am))+annotation_raster(img, xmin =-Inf, xmax =Inf, ymin =-Inf, ymax =Inf)+geom_point(size =10, shape =14)+scale_color_gradient(low ="yellow", high ="yellow")+labs( x ="Gallons Per Mileage", y ="Weight in 1000 pounds (measured in thousands of pounds, not hundreds, not kilograms, not grams, not liters, not John Zitos, but most certainly thousands of pounds", title ="CAr StUFf", subtitle ="Idk what to put here")+coord_cartesian(xlim =c(0, 10), ylim =c(-1000, 500))+theme( panel.background =element_rect(fill ="black"), plot.background =element_rect(fill ="orange", color ="black"), legend.position =c(0.85, 0.15))
Third place: Henry O’Hara
“I know we are supposed to make 5 changes to the graph, but one main one was really all I needed. No need to explain why it’s ugly.”
Code

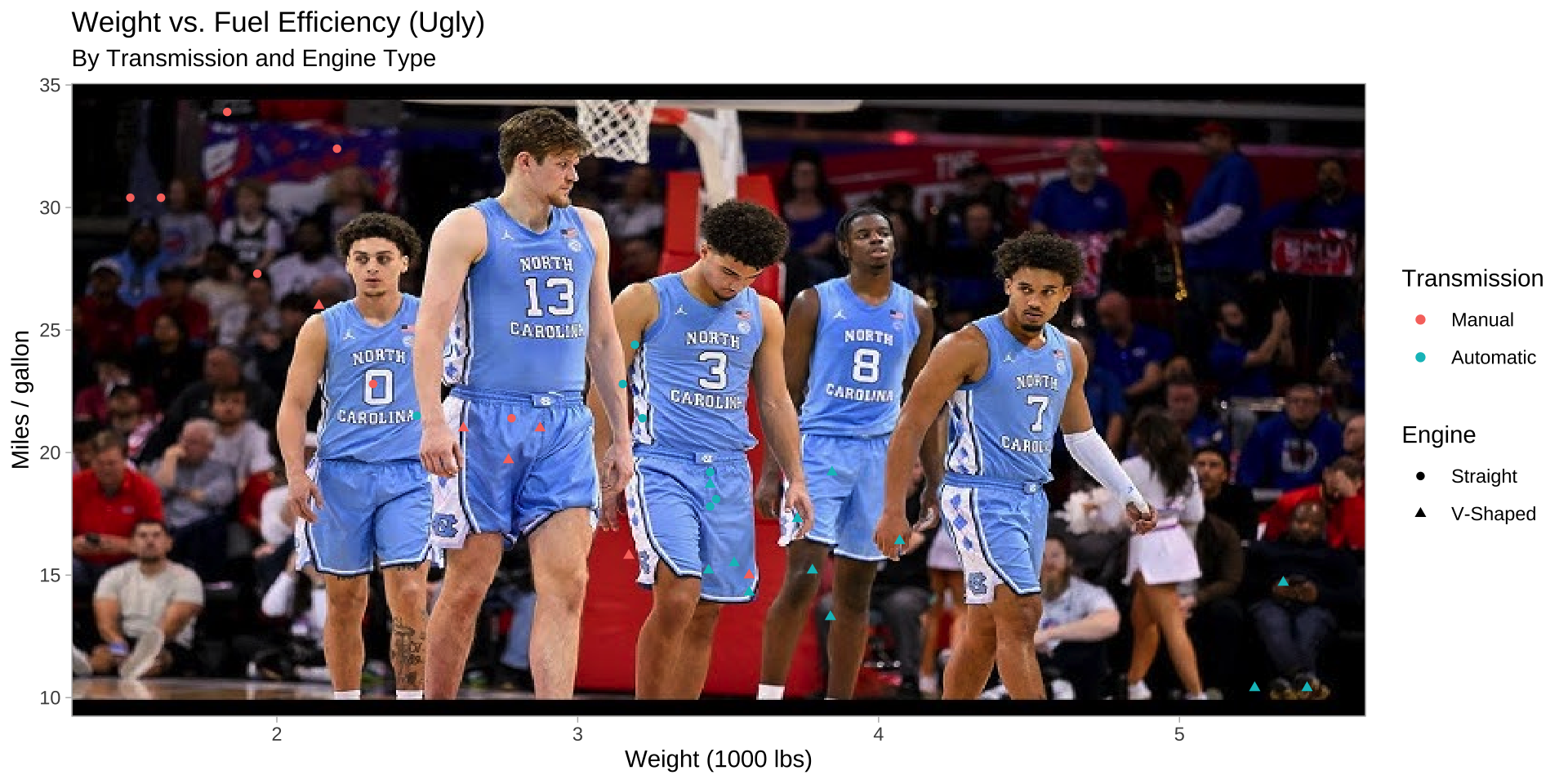

#I used Google Gemini 3 to show me how to make the image the background.#The date was 2.15.26#The link was https://gemini.google.com/share/baddfa4f4e0elibrary(magick)library(ggpubr)unc_url<-"https://i.ytimg.com/vi/QGUKD_UgSmE/hq720.jpg?sqp=-oaymwEhCK4FEIIDSFryq4qpAxMIARUAAAAAGAElAADIQj0AgKJD&rs=AOn4CLADGSk5U3I0StJLmaxqeBIdd4AE-w"unc_img<-magick::image_read(unc_url)mtcars|>mutate(am =factor(am, levels =c(1,0), labels =c("Manual", "Automatic")), vs =factor(vs, levels =c(1,0), labels =c("Straight", "V-Shaped")))|>ggplot(aes(x =wt, y =mpg, color =am, shape =vs))+background_image(unc_img)+geom_point()+labs( x ="Weight (1000 lbs)", y ="Miles / gallon", color ="Transmission", shape ="Engine", title ="Weight vs. Fuel Efficiency (Ugly)", subtitle ="By Transmission and Engine Type")+theme_light()+theme(legend.position ="right")
First place: Sammy Ciuni
Code

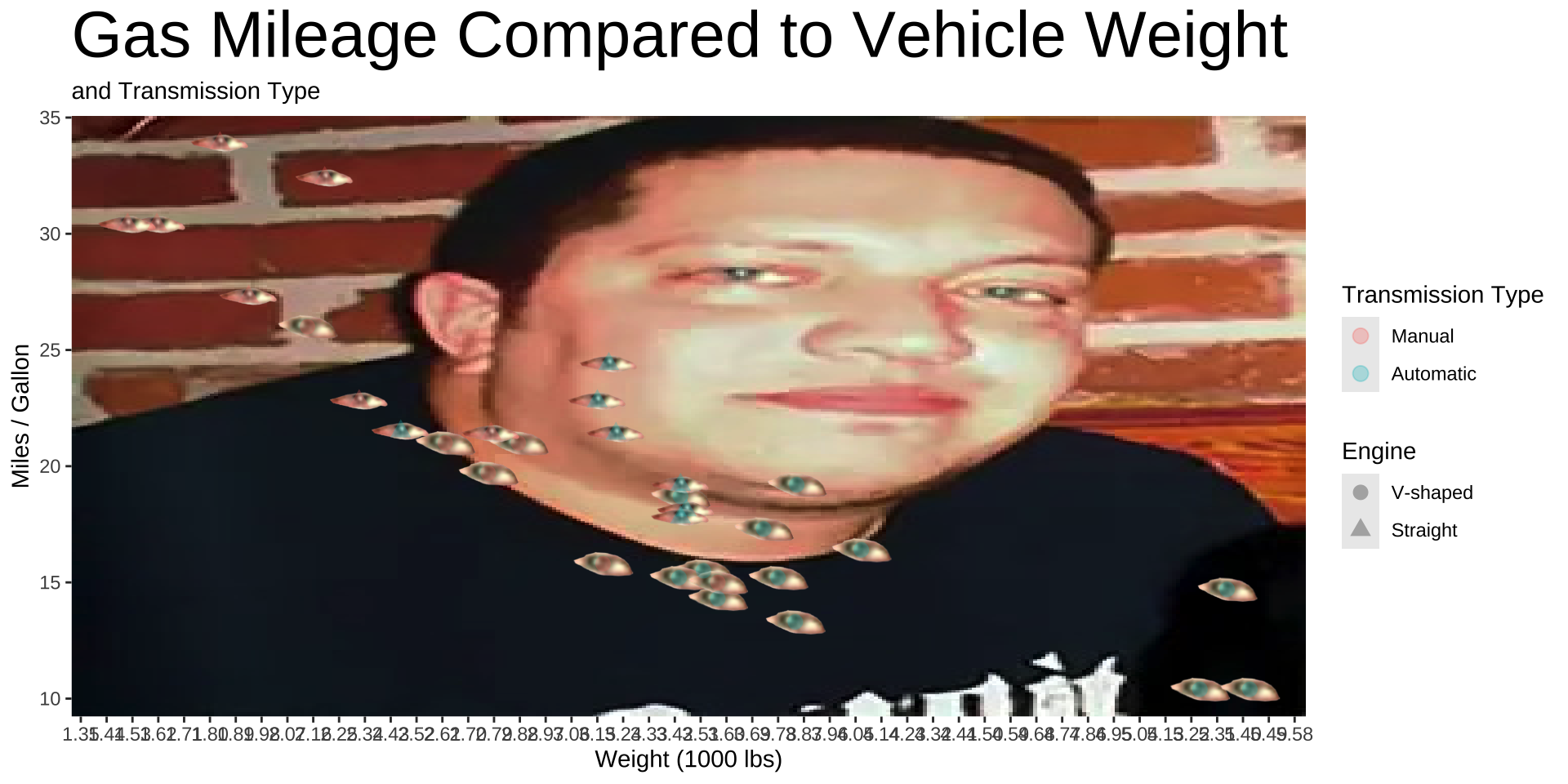

library(jpeg)library(png)library(ggimage)library(ggpubr)library(systemfonts)long_live_sal<-readJPEG("images/13/download.jpg")left_eye<-"images/13/left-eye.png"right_eye<-"images/13/right-eye.png"mtcars|>mutate(am =case_when(am==1~"Manual", .default ="Automatic"), vs =case_when(vs==1~"Straight", .default ="V-shaped"), img =if_else(vs=="Straight", left_eye, right_eye))|>ggplot(aes(x =wt, y =mpg, shape =factor(vs)))+background_image(long_live_sal)+geom_image(aes( image =img), size =0.1)+geom_point(aes(color =am), size =3, alpha =0.3)+labs( x ="Weight (1000 lbs)", y ="Miles / Gallon", color ="Transmission Type", shape ="Engine", title ="Gas Mileage Compared to Vehicle Weight", subtitle ="and Transmission Type")+scale_x_continuous(breaks =seq(0, 6, 0.09))+scale_color_discrete(limits =c("Manual", "Automatic"))+scale_shape_discrete(limits =c("V-shaped", "Straight"))+theme(legend.position ="right", plot.title =element_text(size =30))

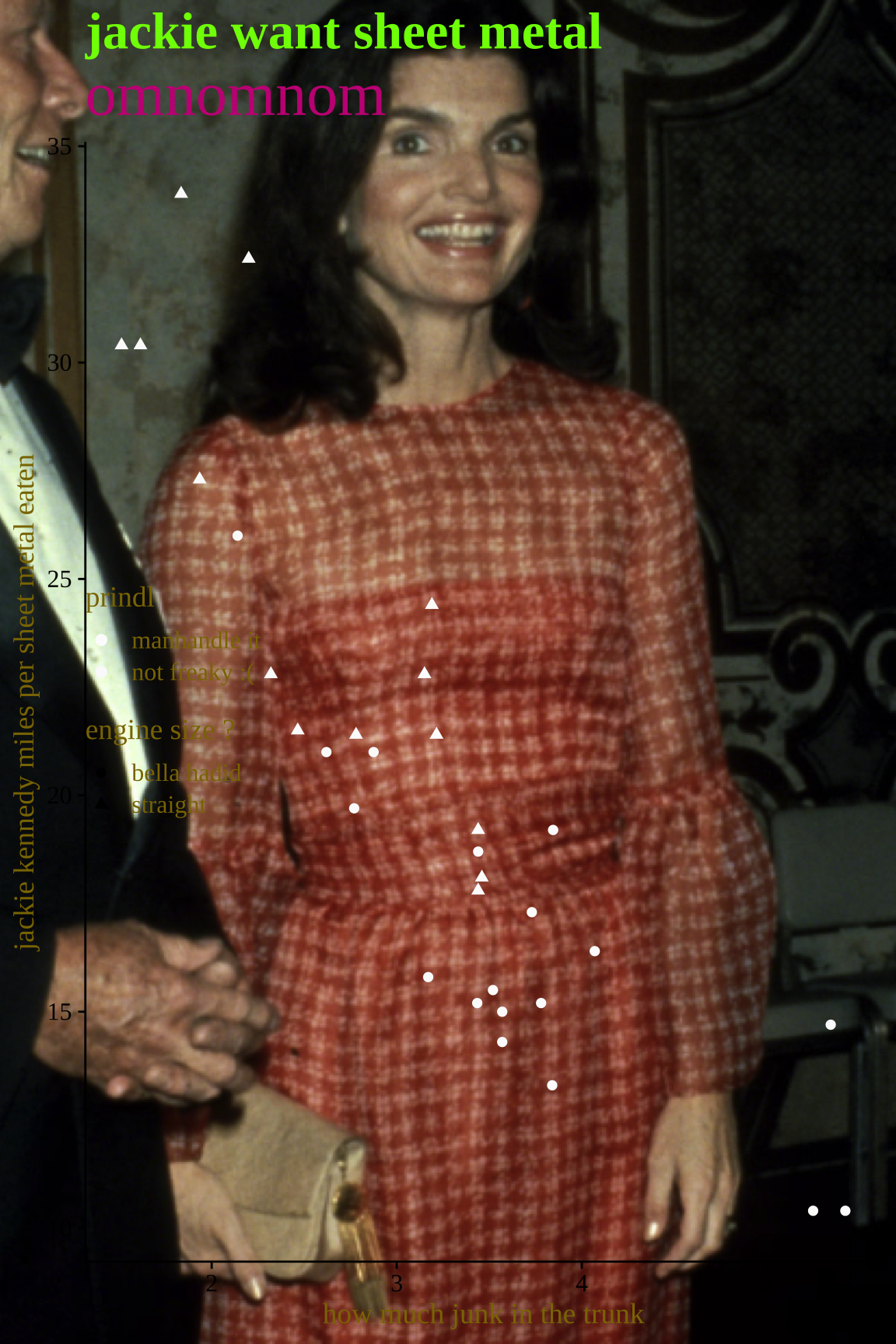

library(png)library(cowplot)library(magick)jackie_photo<-readPNG("images/13/jackie_o.png")theme_set(theme_cowplot())bad_graph<-mtcars|>mutate(am =if_else(am==0, "manhandle it", "not freaky :("), am =fct_relevel(am, "manhandle it", "not freaky :("), vs =if_else(vs==0, "bella hadid", "straight"))|>ggplot(aes(x =wt, y =mpg, color =am, shape =vs))+geom_point(alpha =1)+theme(legend.position ="inside", plot.title =element_text(size =25, color ="lawngreen"), plot.subtitle =element_text(size =30, color ="mediumvioletred"),# plot.background = element_rect(fill = "yellow3"), text =element_text(color ="gold4", family ="serif"))+scale_color_manual(values =c("manhandle it"="gray99", "not freaky :("="gray98"))+labs( x ="how much junk in the trunk", y ="jackie kennedy miles per sheet metal eaten", title ="jackie want sheet metal", subtitle ="omnomnom", color ="prindl", shape ="engine size ?")ggdraw()+draw_image(jackie_photo, scale =1.2)+draw_plot(bad_graph)
Project
The bottom line, at the top
Write an in-depth article that might appear in the popular press (NYT, Chronicle, etc);
Audience: intelligent but non-technical reader that is unfamiliar with the domain;
Emphasize clear communication, attractive and informative graphics, and carefully chosen numerical summaries;
R code and raw output should not appear;
All figures and tables should be labeled with captions.

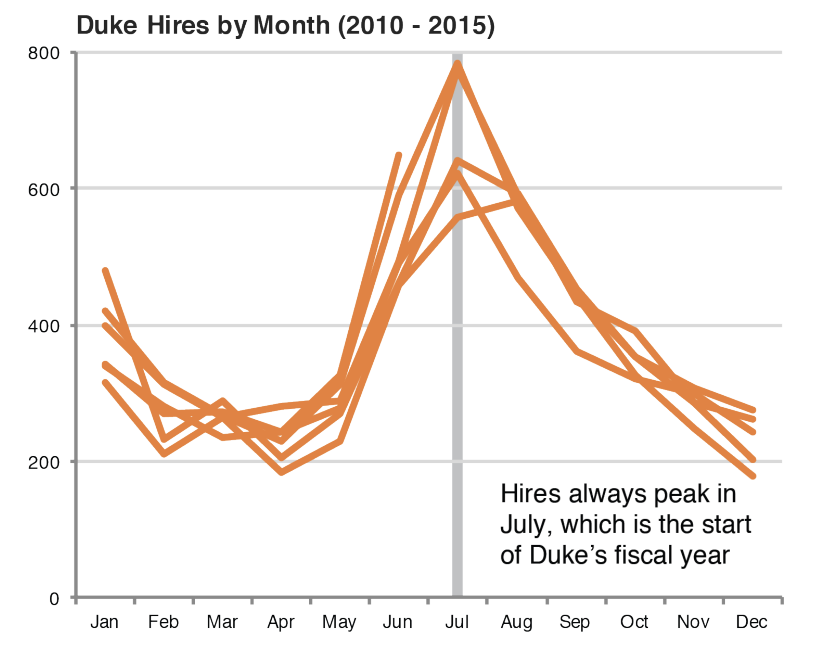

Instant reveal: Resolution, and hidden in it motivation
Simplicity vs. complexity

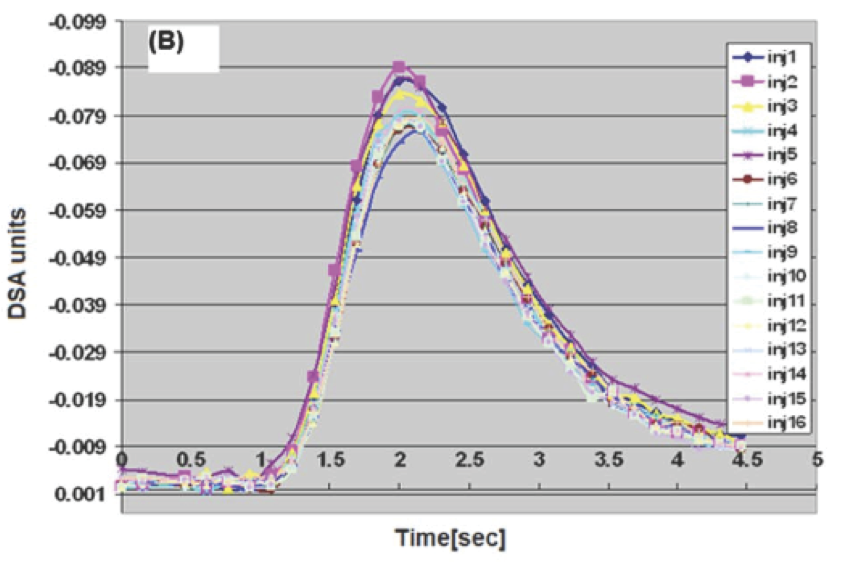

When you’re trying to show too much data at once you may end up not showing anything.

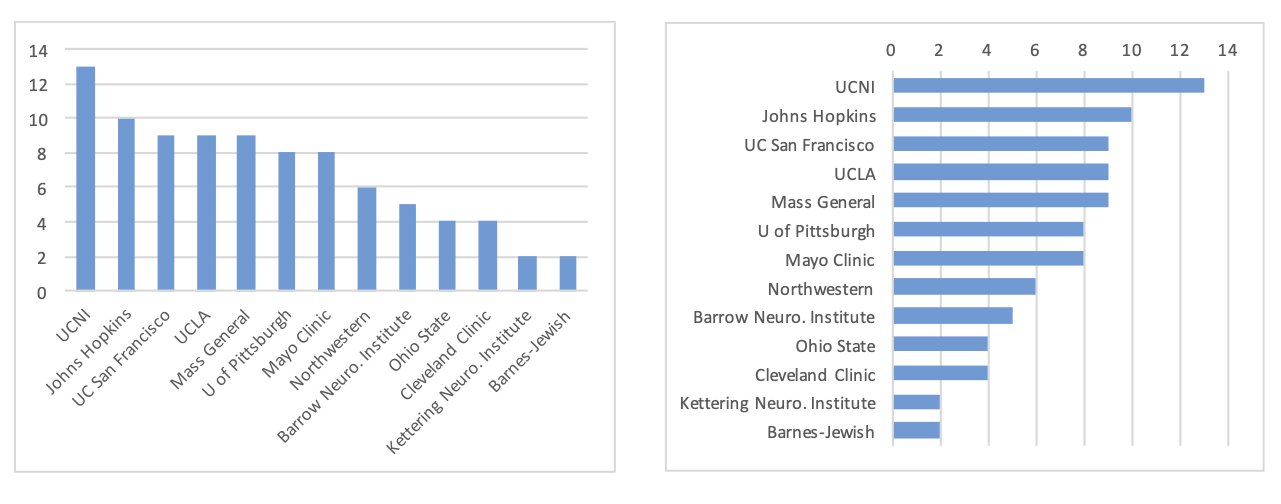

Never assume your audience can rapidly process complex visual displays
Don’t add variables to your plot that are tangential to your story

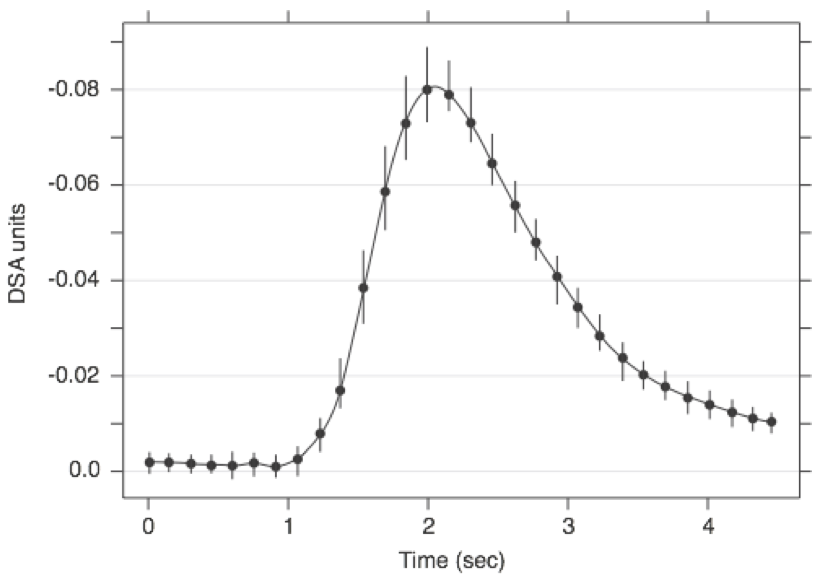

Don’t jump straight to a highly complex figure; first show an easily digestible subset (e.g., show one facet first)
Aim for memorable, but clear
Project note: Make sure to leave time to iterate on your plots after you practice your presentation. If certain plots or outputs are getting too wordy to explain, take time to simplify them!
Consistency vs. repetitiveness
Be consistent but don’t be repetitive.
Use consistent features throughout plots (e.g., same color represents same level on all plots)
Aim to use a different type of summary or visualization for each distinct analysis
Project note: If possible, ask a friend who is not in the class to listen to your presentation and then ask them what they remember. Then, ask yourself: is that what you wanted them to remember?
Participate 📱💻
When you read an article, which style do you prefer?
Sequential reveal
Instant reveal
neither
Scan the QR code or go HERE. Log in with your Duke NetID.
Warning: Removed 2 rows containing missing values or values outside the scale range
(`geom_point()`).

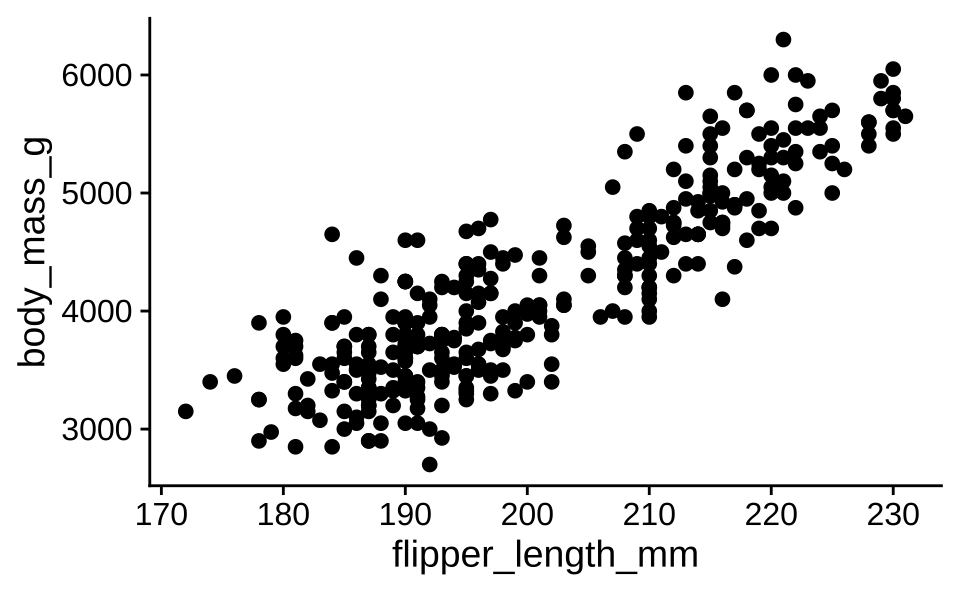

Figure 1: The relationship between body mass and flipper length of penguins.
As seen in @fig-penguins, there is a positive and relatively strong relationship between body mass and flipper length of penguins.```{r}#| label: fig-penguinsggplot(penguins, aes(x = flipper_length_mm, y = body_mass_g)) +geom_point()```
Trends instructional staff employees in universities

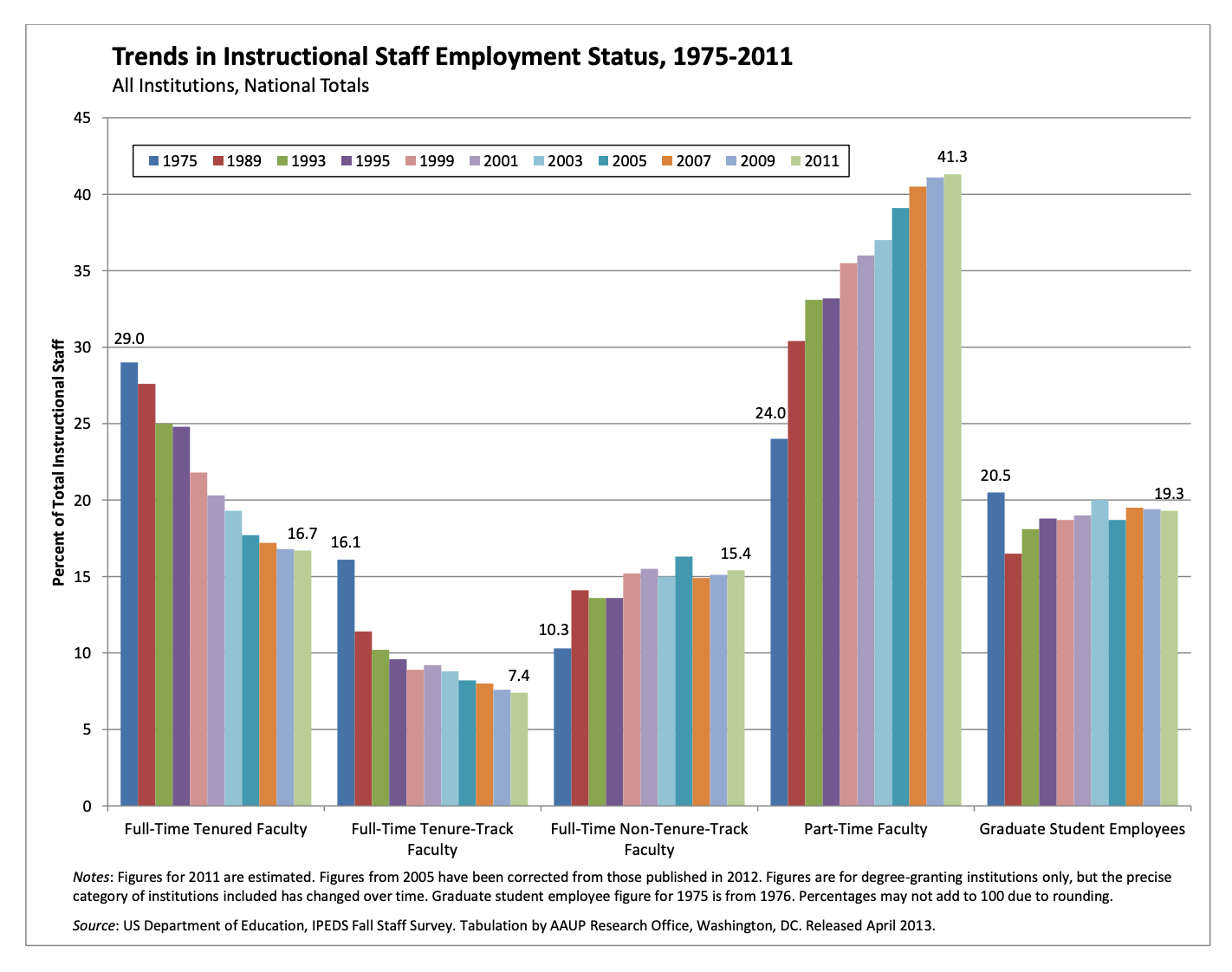

The American Association of University Professors (AAUP) is a nonprofit membership association of faculty and other academic professionals. This report by the AAUP shows trends in instructional staff employees between 1975 and 2011, and contains the following image. What trends are apparent in this visualization?
ae-14-effective-dataviz
Go to your ae project in RStudio.
If you haven’t yet done so, make sure all of your changes up to this point are committed and pushed, i.e., there’s nothing left in your Git pane.
If you haven’t yet done so, click Pull to get today’s application exercise file: ae-14-effective-dataviz.qmd.
Work through the application exercise in class, and render, commit, and push your edits.
p<-ggplot(staff_long,aes( x =year, y =percentage, color =faculty_type_color, group =faculty_type))+geom_line(linewidth =1, show.legend =FALSE)+labs( x =NULL, y ="Percent of Total Instructional Staff", color =NULL, title ="Trends in Instructional Staff Employment Status, 1975-2011", subtitle ="All Institutions, National Totals", caption ="Source: US Department of Education, IPEDS Fall Staff Survey")+scale_y_continuous(labels =label_percent(accuracy =1, scale =1))+scale_color_identity()+theme( plot.caption =element_text(size =8, hjust =0), plot.margin =margin(0.1, 0.6, 0.1, 0.1, unit ="in"))+coord_cartesian(clip ="off")+annotate( geom ="text", x =2012, y =41, label ="Part-Time\nFaculty", color ="firebrick3", hjust ="left", size =5)+annotate( geom ="text", x =2012, y =13.5, label ="Other\nFaculty", color ="gray40", hjust ="left", size =5)+annotate( geom ="segment", x =2011.5, xend =2011.5, y =7, yend =20, color ="gray40", linetype ="dotted")p

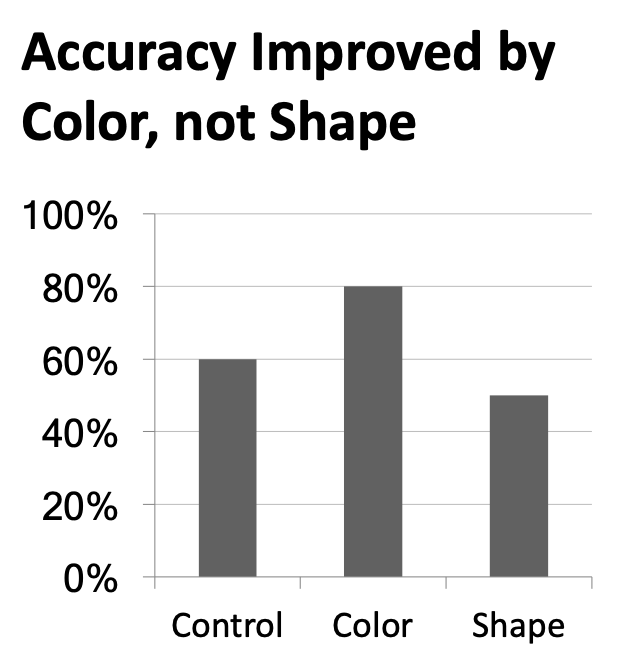

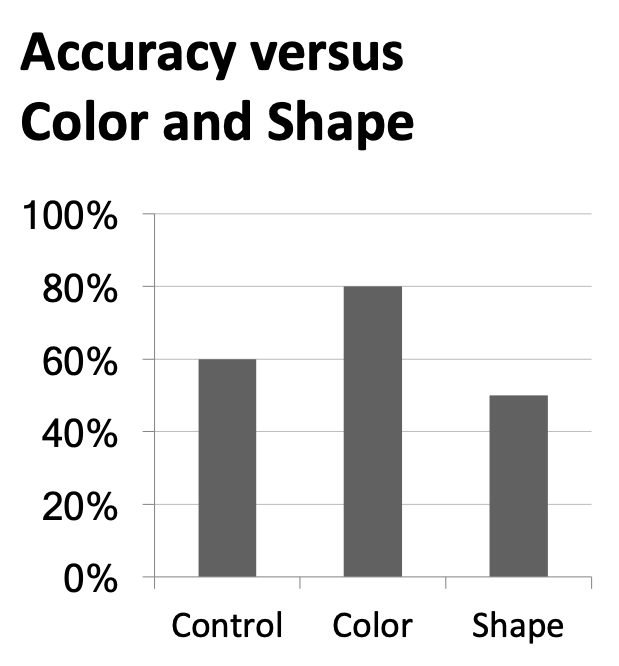

Use labels to communicate the message
Code

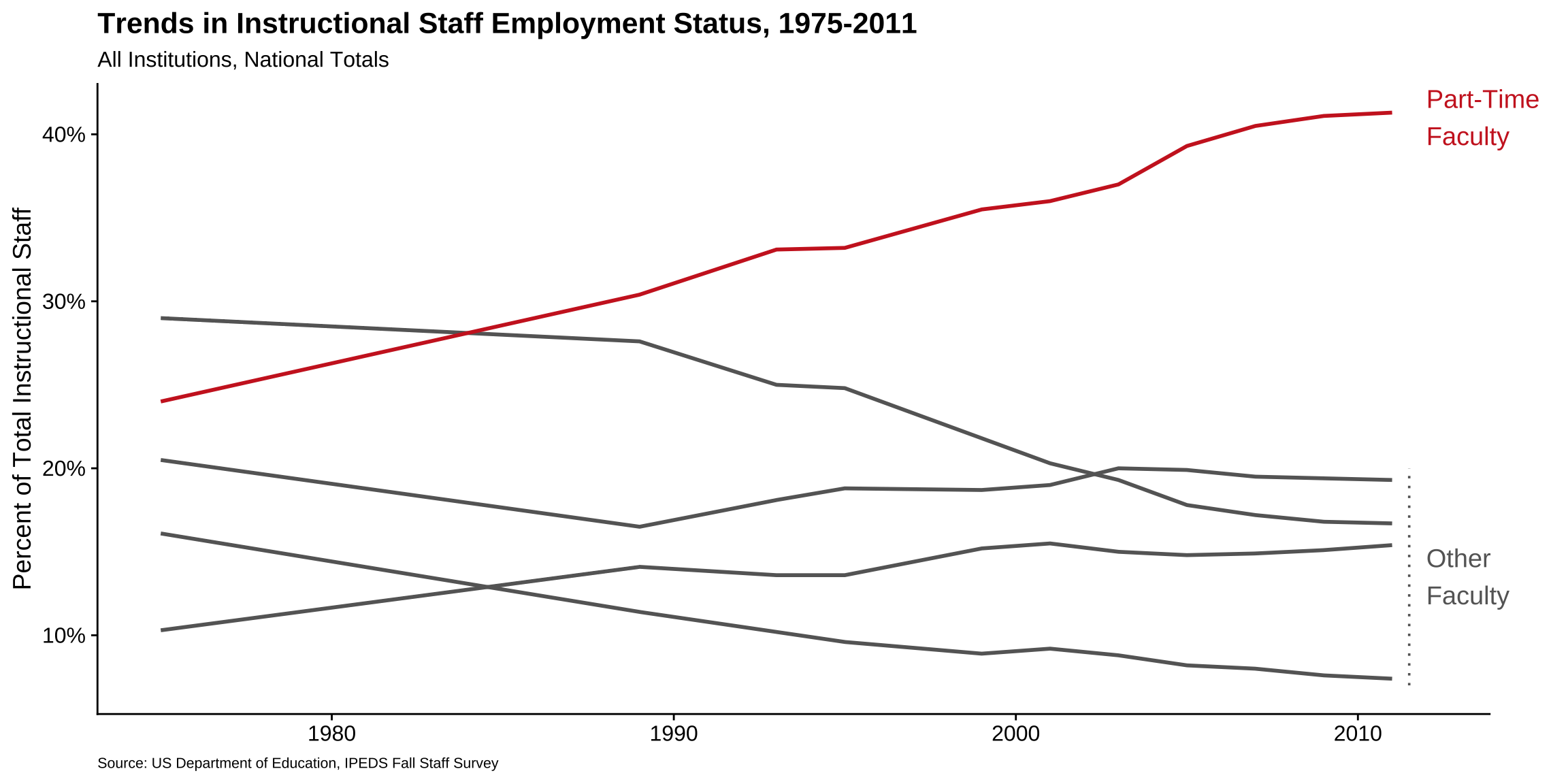

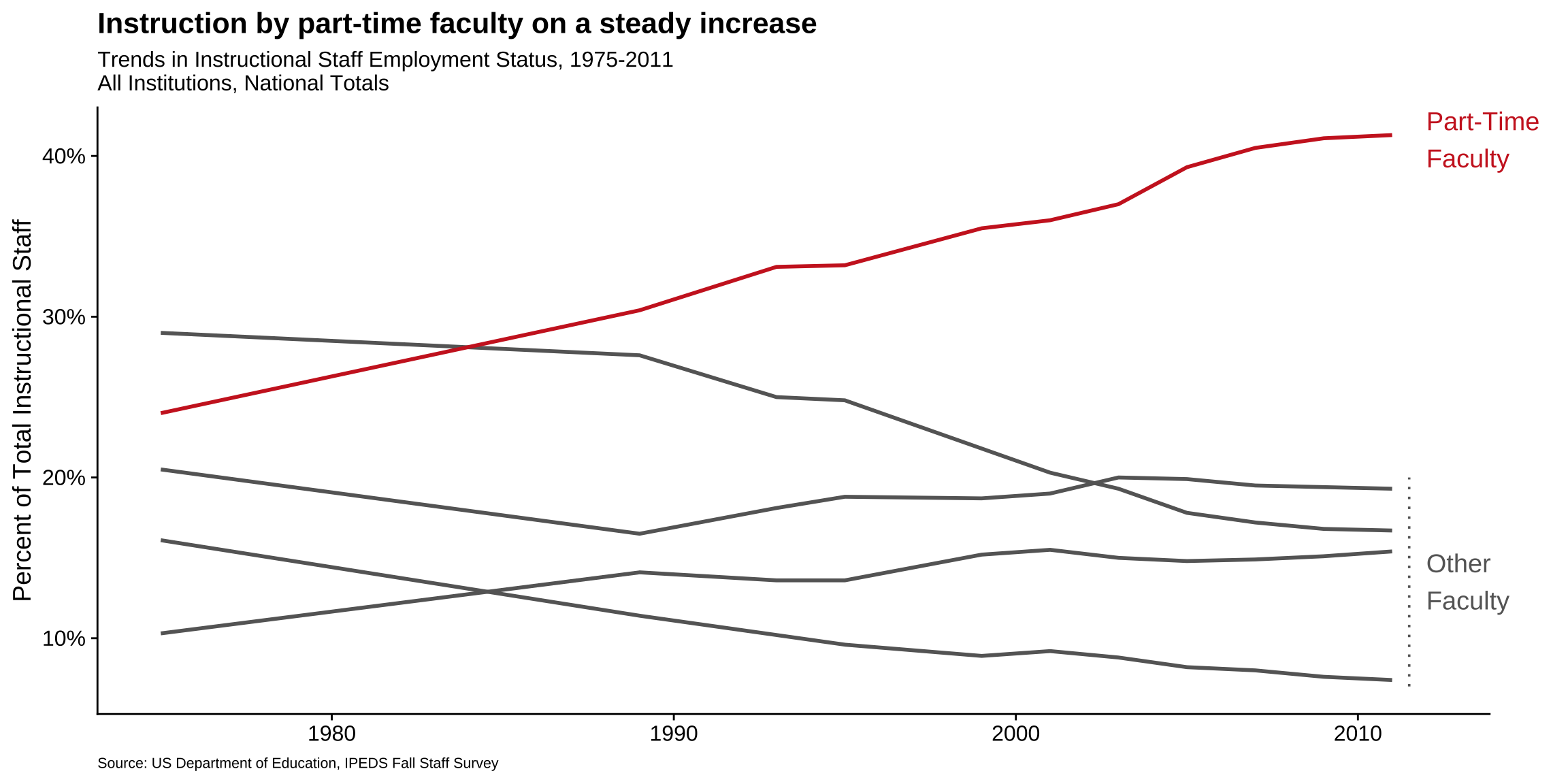

p+labs( title ="Instruction by part-time faculty on a steady increase", subtitle ="Trends in Instructional Staff Employment Status, 1975-2011\nAll Institutions, National Totals", caption ="Source: US Department of Education, IPEDS Fall Staff Survey", y ="Percent of Total Instructional Staff", x =NULL)
Simplify
Code
p+labs( title ="Instruction by part-time faculty on a steady increase", subtitle ="Trends in Instructional Staff Employment Status, 1975-2011\nAll Institutions, National Totals", caption ="Source: US Department of Education, IPEDS Fall Staff Survey", y ="Percent of Total Instructional Staff", x =NULL)+theme(panel.grid.minor =element_blank())

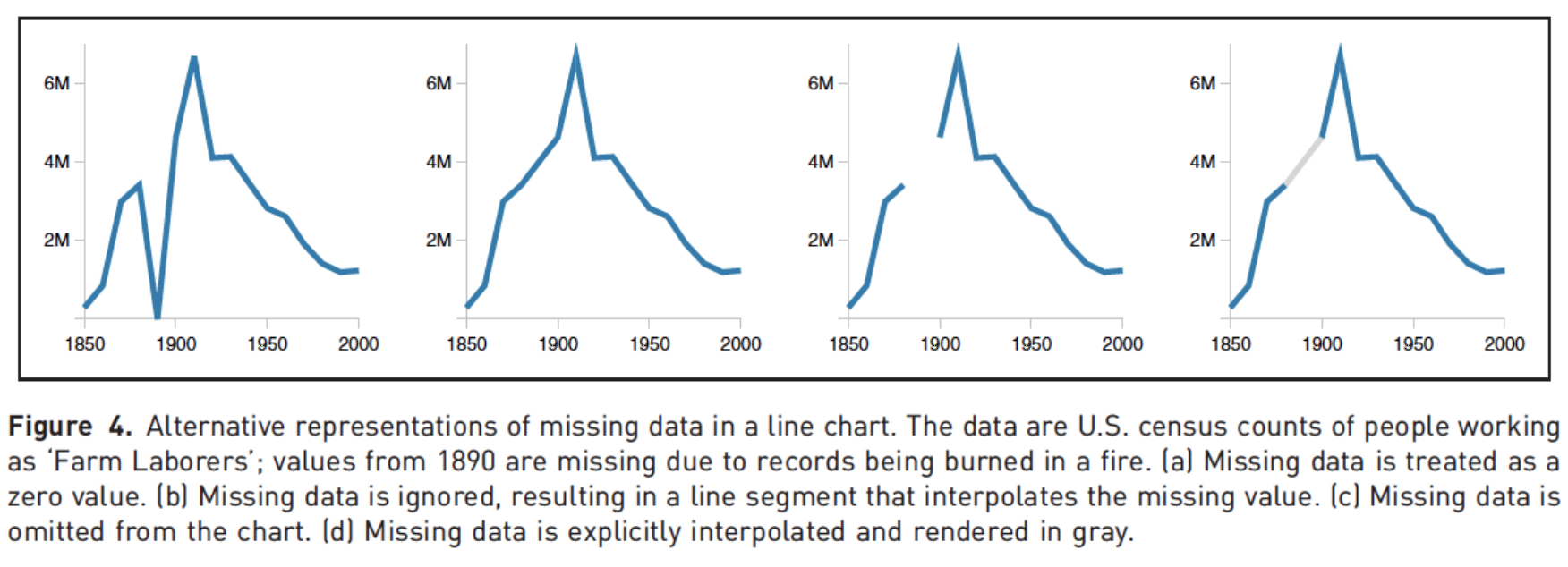

Summary

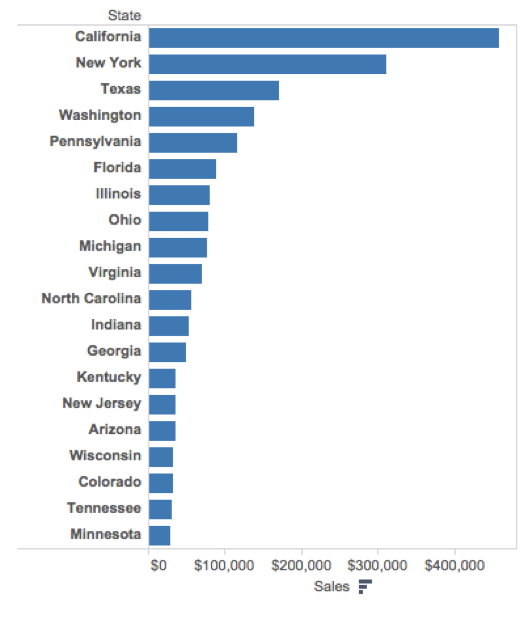

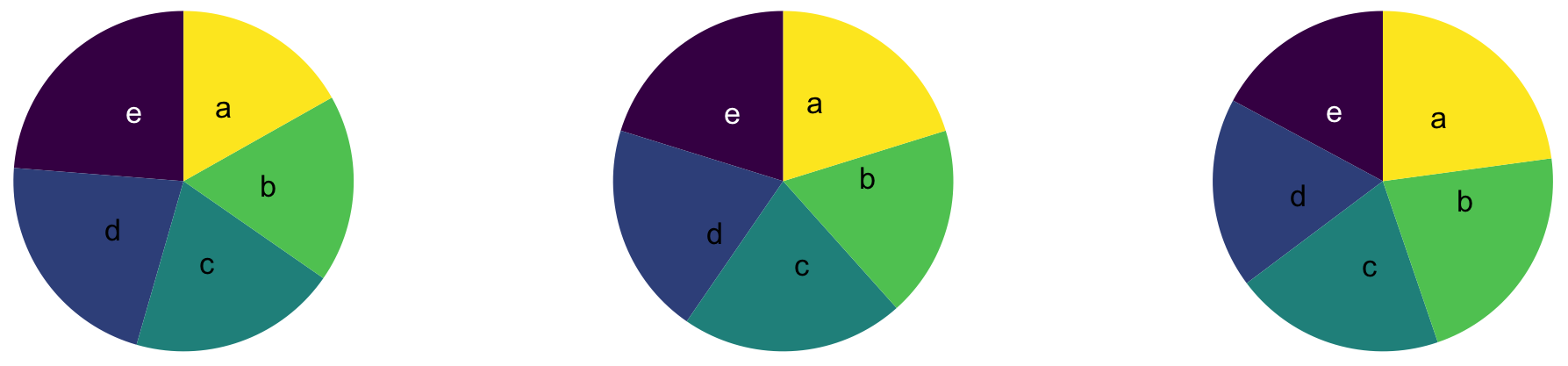

Represent percentages as parts of a whole
Place variables representing time on the x-axis when possible
Pay attention to data types, e.g., represent time as time on a continuous scale, not years as levels of a categorical variable
Prefer direct labeling over legends
Use accessible colors

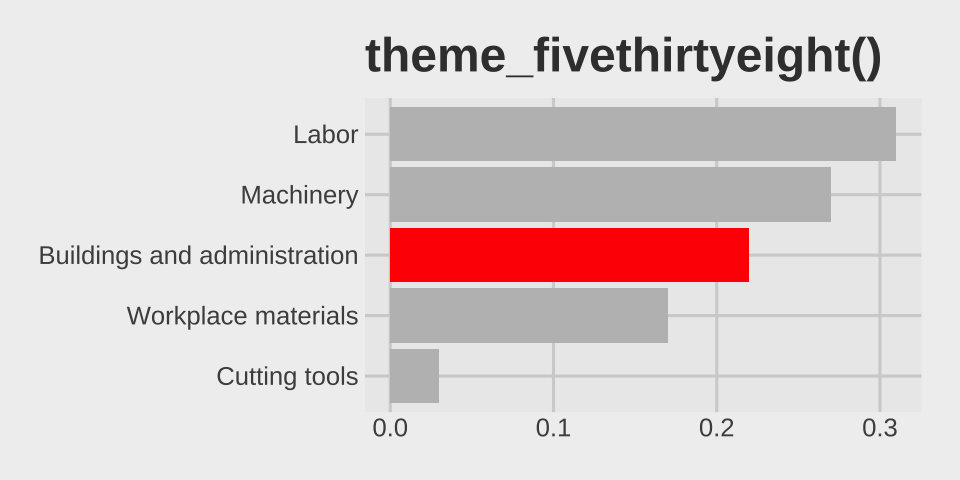

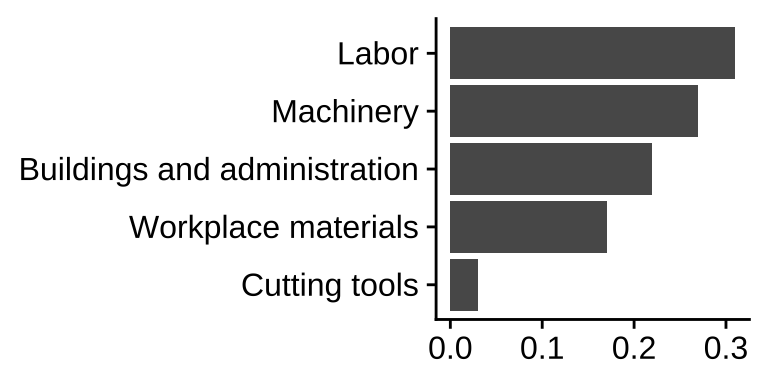

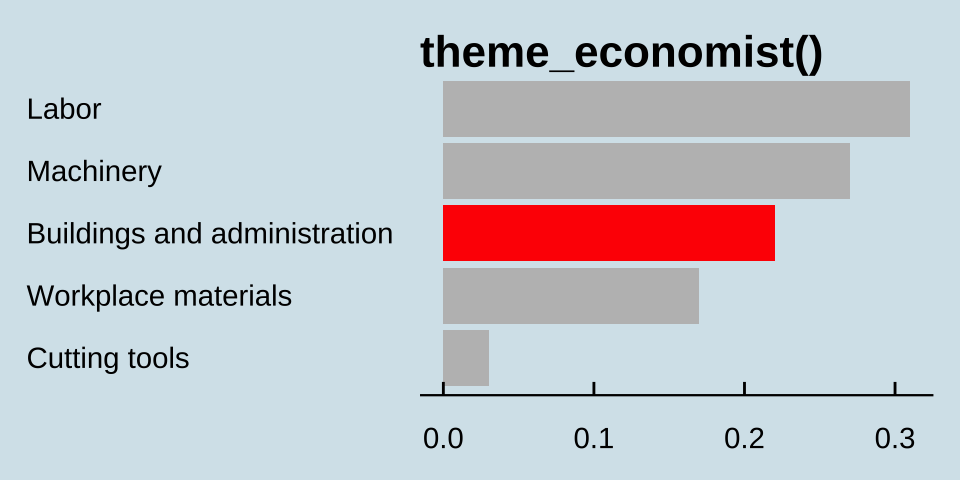

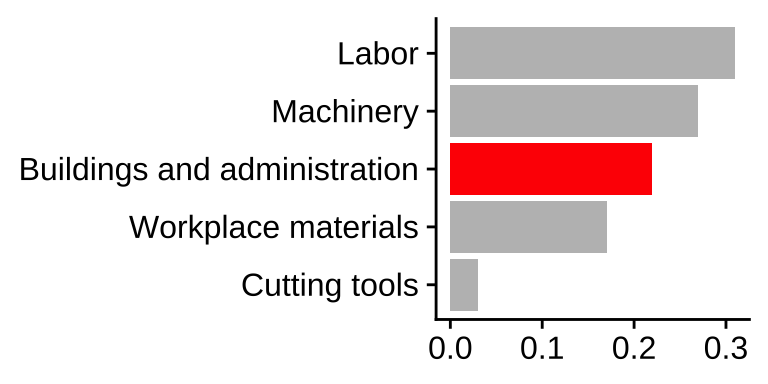

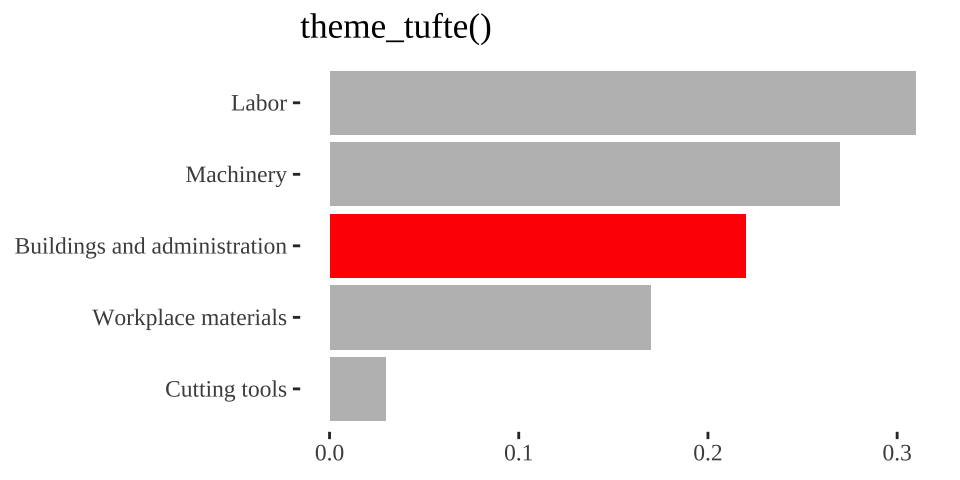

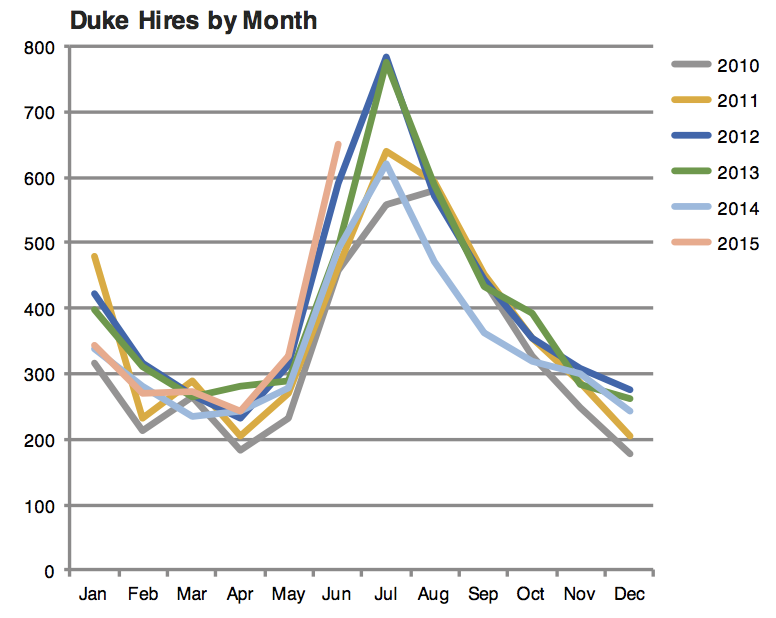

Use color to draw attention

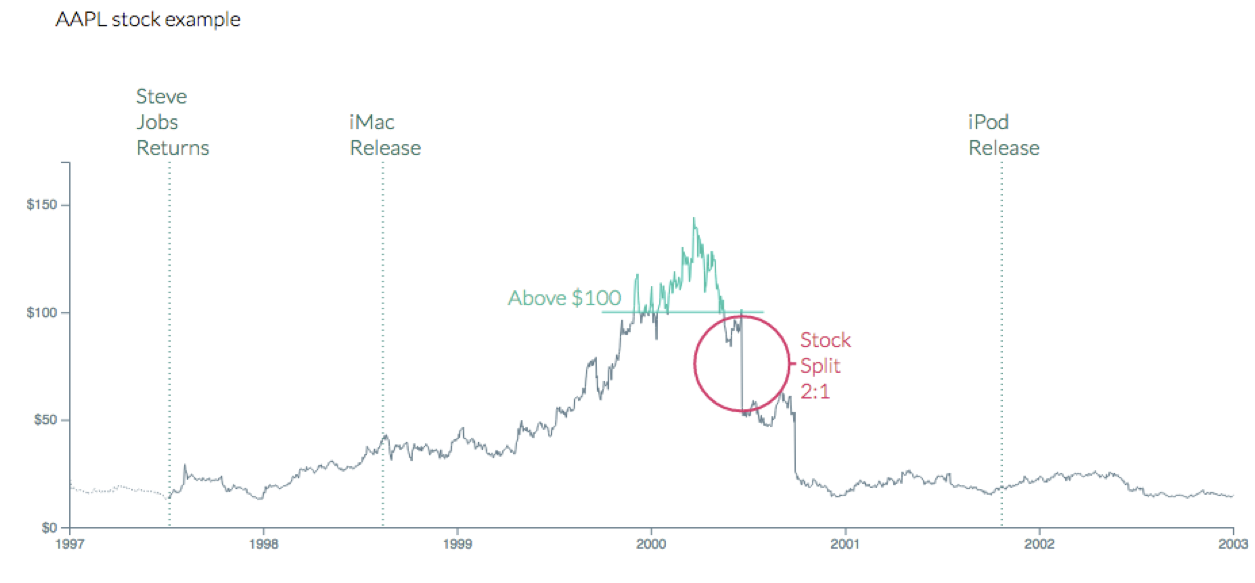

Pick a purpose and label, color, annotate for that purpose
Communicate your main message directly in the plot labels
Simplify before you call it done (a.k.a. “Before you leave the house, look in the mirror and take one thing off”)
